Liftroller® - Smarter onsite logistics

In the construction industry, we face many HSE challenges daily. One of the most demanding is transporting heavy materials from ground level to the floor where they will be used. Today’s methods are tiring for personnel, time consuming and too often lead to injured people and damaged property.

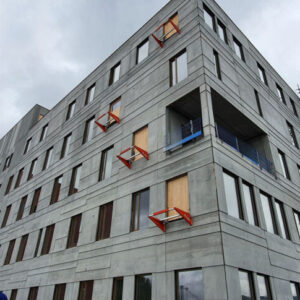

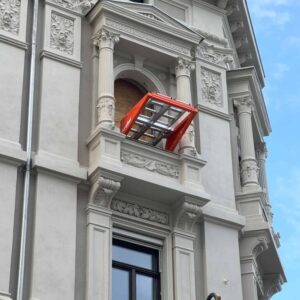

We decided to do something about these challenges. The solution is Liftroller®. The Liftroller® in-lift system creates a transport-path

through a window of the floor where materials shall be used. A crane is used to lift material up to the Liftroller, in through the window opening and onto Liftwagon®.

Using Liftwagon®, the materials are then lowered onto supporting trestles. In this way, heavy objects can be transported quickly, easily and securely to the floor where they’ll be used without workers having to do any heavy lifting.

Liftroller® - step by step

Liftroller
Place a trestle in the slot

In the middle of the Liftwagon® roller table, there is a slot for a trestle. When a trestle is placed there, it is ready to support the centre of your load when the time comes to lower the Liftwagon®.

Liftroller
Lift the materials by crane to the Liftroller®

The crane operator lifts load from ground level up to the Liftroller®. The work crew receiving the materials through the opening then help to centralise the load on the Liftroller® roller table.

Liftroller
Roll the load onto the waiting Liftwagon®

When the slings from the crane are slack and the load rests on Liftroller®, it can then be rolled onto the Liftwagon®. The crane straps are left lying between the rollers on the Liftroller®. The crane can then return to ground level to collect another load.

Liftroller
Last settes på gipsbukker

Last plasseres på gipsbukker på egnet sted, og vogn frigjøres til å hente neste last.

Liftroller
Neste pakke allerede klar

Innen man er tilbake til Liftroller ligger neste last og venter på å trilles inn. Raskt, sikkert og enkelt! En leveranse bestående av 8 kolli gips og 2 kolli stendere, levert med kranbil, vil være plassert i riktig etasje 3 ganger raskere og legger samtidig beslag på 66 % mindre av arbeidsstokken for å utføre denne operasjonen. Penger spart i alle ledd!!

1
2
3
4
5

Product testimonials


Marius Kaland, chief site safety officer with Norwegian construction firm Byggmester Markhus, says: ‘It was incredibly effective taking plasterboards into the building using Liftroller®. In many cases, especially in rehab jobs, it’s often a challenge to get these to the floor where they will be used. It usually involves a lot of heavy lifting.

‘With Liftroller® it went effortlessly. It was just a case of rolling the plasterboards in through the window, then onto the accompanying Liftwagon®. Because it turns on all four wheels, it was agile and easy to steer, even in tight spaces. Being able to place the materials straight onto the trestles saved us a lot of time and effort.’

“

‘It was incredibly effective taking plasterboards into the building using Liftroller®'

Marius Kaland, chief site safety officer Byggmester Markhus AS

Options in Liftroller® series

Product image

Liftwagon®

Liftwagon®

Liftwagon® is a materials wagon designed to be used with the Liftroller®. Like Liftroller®, it features a number of aluminium parts that make it light but strong. It is easy to disassemble then reassemble. In this way, it can be carried up to the floor you want if using a lift is not an option. Large, puncture-free wheels, all of which can turn, make it easy to handle. A slot for a trestle in the middle of the wagon means that support is ready when it comes time to lower the materials. The Liftroller®’s small width means it can be steered through doorways.

Lifting height: 450 - 1250mm

Maximum load: 1200 kg

Length x width: 2000m x 800mm
